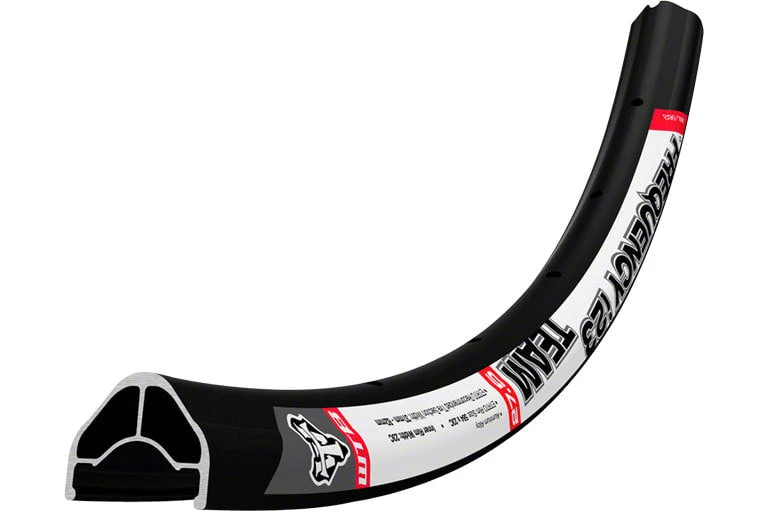

PARTS / ACCESSORIES WTB Frequency Team I23 Bike Rim

Frequency rims are reowned for their craftmanship, durability, rigidity, and tubeless simplicity. A UST-compliant inner rim profile provides standards-driven consistency while a tape and sealant system eliminates precious rotational weight.WTB”s legendary I-Beam, 4D drilling, and WT69 Alloy further aid in lateral and torisional strength while maximizing lifespan. Add CID and you can walk into any shop and not worry about proprietary parts needed.

• Unbendium Bulge-a band of material added to the sidewall of the rim to counter torsional, radial and lateral flex
• 4D drilling provides a perfect interface between the rim and spoke and eliminates the need for eyelets
• I-Beam: a vertical beam designed to counter spoke loads and provide torsional rigidity
• On-Ramp feature provides consistent fit between rims and tire for easy installation and inflation
• Tubless Compatible System (TCS) – rim profile is designed especially for TCS or UST tires and will also work with tube-type tires when used with tubes. TCS rim tape, valve and sealant is needed to run a tubeless set-up with TCS or UST tires
• Eyelets: None
• Hub Drilling: 32
• ISO Diameter: 622 / road / 29″
• Manufacturer Spec ERD (mm): 599 mm
• Rim Center Offset (mm): 0 mm
• Rim Depth (mm): 17.5 mm
• Rim Joint: Sleeved
• Rim Material: Alloy
• Rim Width (External): 28 mm
• Rim Width (Internal): 23 mm
• Tire Type: Tubeless Compatible
• Valve: Presta
• Valve Length: Short
• Weight: 470 g
• Wheel Size: 29
